Key Features

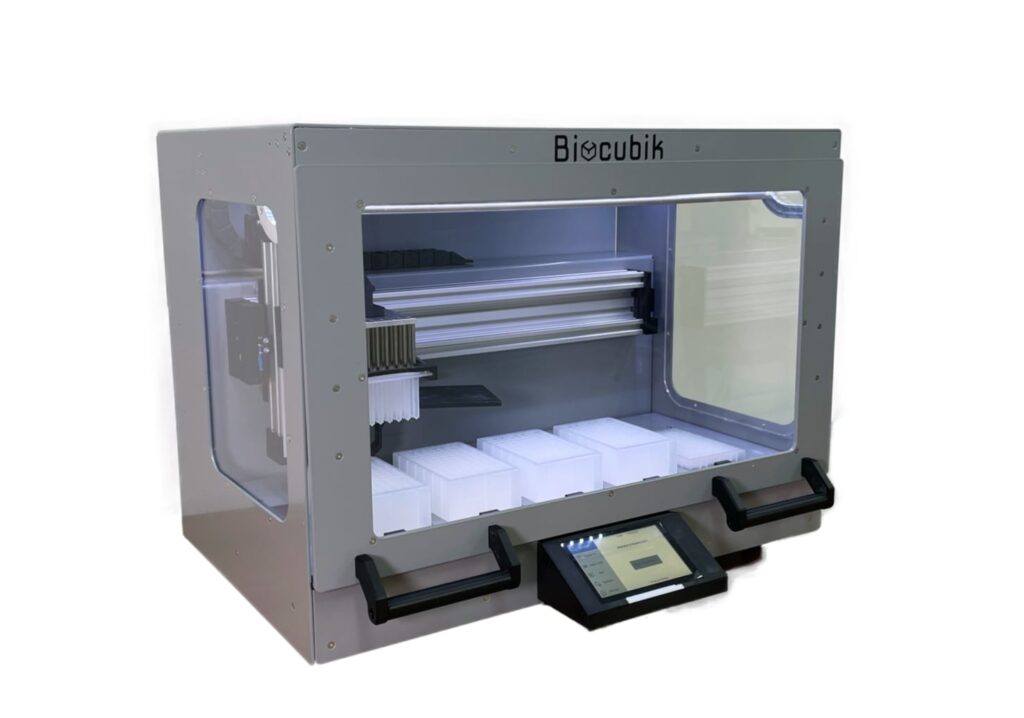

High-Throughput DNA/RNA Magnetic Bead Extraction
Process up to 96 samples in just 20-30 minutes, making it an efficient solution for labs of any size.
Efficient Linear Movement
Designed for ease of operation, reducing complexity in workflows.
Customizable Protocols
User-editable and stored on microSD cards, providing flexibility for diverse applications.
UV Disinfection
Helps maintain a contamination-free environment.
Operation Logbook
Automatically records protocols, user data, and barcodes.
Temperature Control
Heating range from room temperature to 90°C with ±1°C accuracy.
Compact Design
Compact dimensions of 61 cm × 47 cm × 47 cm and a weight of 25 kg, ideal for optimizing lab space
User interactions
Barcode Reader (EAN 128)
User Identification for Enhanced Traceability
5-inch Color Touchscreen for intuitive and user-friendly control
Customizable Options
At Biocubik, we understand that every lab has unique needs. That’s why the NucleoCube offers the option to customize not just the protocols, but also its hardware and firmware. Whether you require specific features or adjustments for your workflow, we collaborate with you to deliver tailored solutions.
Consumables Made in Europe
We supply all the essential consumables for your NucleoCube, including:
- Tip Comb
- 96 Deep Well Plates
- Elution Plates
All are manufactured locally in Europe with a focus on quality and reliability, and sustainability.
Technical specifications
| Feature | Description |
|---|---|
| Work Principle | Magnetic Beads Method |
| Throughput | 1 – 96 |
| Consumable | 96 Deep Well Plate |
| Volume | 30 μl – 1000 μl |
| Heating Temperature | Room Temperature – 90°C |
| Temperature Accuracy | ± 1°C |
| Display | 5-inch color touch screen |
| Barcode reader | EAN 128 |
| Protocols | User editable, stored on microSD card |
| Logbook | Protocol, user & barcode stored as text log on the microSD card |
| Network | LIMS connection on demand |
| Disinfection | UV Disinfection |
| Maximum Input Power | 180 W |
| Size | 70 cm × 59 mm × 45 mm |
| Weight(kg) | 30 kg |
